Schneider ExRDM 3913/50 NEa Stepper Motor with Neugart PL 50/10 Reducer, new, never used, available in original box

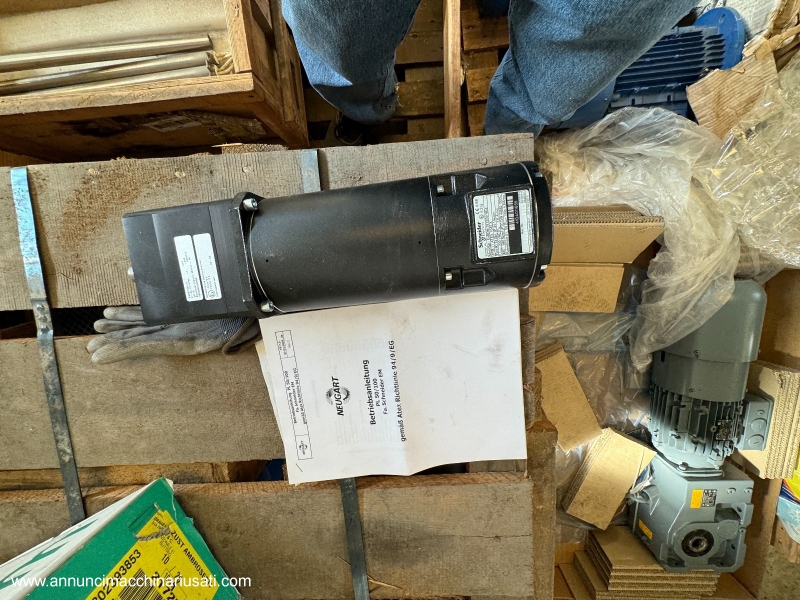

Schneider Stepper C€ 0158 112 G with Neugart PL 50/10 Reducer

Engine Description

The Schneider C€ 0158 112 G stepper motor is a high-precision motor designed for industrial applications requiring precise motion control. It is constructed of durable materials to ensure longevity and reliability, including a robust metal housing that protects the internal components.

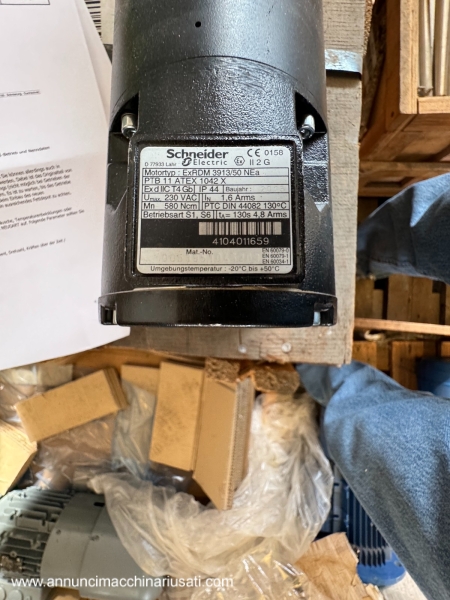

Main technical specifications:

• Model: ExRDM 3913/50 NEa
• Certification: PTB 11 ATEX 1042 X
• Degree of Protection: Ex d IIC T4 Gb IP 44
• Power supply voltage: 230 VAC
• Rated Current: 1.6 Amps
• Rated Torque: 580 Ncm
• Temperature Sensor: PTC DIN 44082, 130°C
• Operating Mode: S1 (continuous operation), S6 (intermittent operation) with TA= 130s
• Maximum Current: 4.8 Arms

Mechanical Features

• Precision: Thanks to stepper technology, the motor allows for very precise control of position, speed and acceleration.
• Robustness: The metal casing and internal materials guarantee high mechanical resistance and durability over time, even in harsh industrial environments.
• Versatility: Suitable for use with various gearboxes, such as the Neugart one, to adapt the gear ratio to different applications.

Mathematical Formulas for Calculating Characteristics

1. Torque ( TT $T$ ): Calculated based on the applied current and the number of motor steps.
2. Angular Velocity ( ω\omega $\omega$ ): ω=2π×RPM/60\omega = 2\pi \times \text{RPM}/60 $\omega$ $=$ $2$ $\pi$ $\times$ $\text{RPM}$ $/60$ .
3. Power ( PP $P$ ): P=T×ωP = T \times \omega $P$ $=$ $T$ $\times$ $\omega$ .

Sectors of Use

The motor is used in sectors that require precision and control, such as industrial automation, numerical control, robots, and machine tools.

Why It's Worth Buying It in Stock for Ready Delivery

Buying ready-to-ship products reduces waiting times and avoids additional costs associated with customizations or specific orders. Furthermore, immediate availability allows for quick replacement of damaged components, minimizing machine downtime.

Technical Data Sheet for the Neugart PL 50/10 Planetary Gearbox

Description of the Reducer

The Neugart PL 50/10 is a planetary gearbox designed for applications requiring high precision and a compact footprint. It is known for its efficiency and ability to significantly reduce motor speed with high efficiency.

Main technical specifications:

• Output shaft diameter: 14 mm
• Total length: 106 mm (first stage)
• Rated torque: up to 260 Nm
• Radial force: up to 1750 N
• Axial force: up to 2500 N
• Torsional backlash: 11-28 arcmin
• Degree of Protection: IP54

Mechanical Features

• High Efficiency: Thanks to the epicyclic configuration, it guarantees uniform load distribution on the gear teeth.
• Low Inertia: Ideal for applications requiring frequent speed changes.
• High Positioning Accuracy: Thanks to the low backlash, the reducer ensures high position control.

Sectors of Use

• Industrial Automation
• Robotics
• CNC machines
• Transport and handling systems

Purchasing this reducer in stock allows you to avoid production and setup times, significantly reducing costs and improving the speed of system implementation
