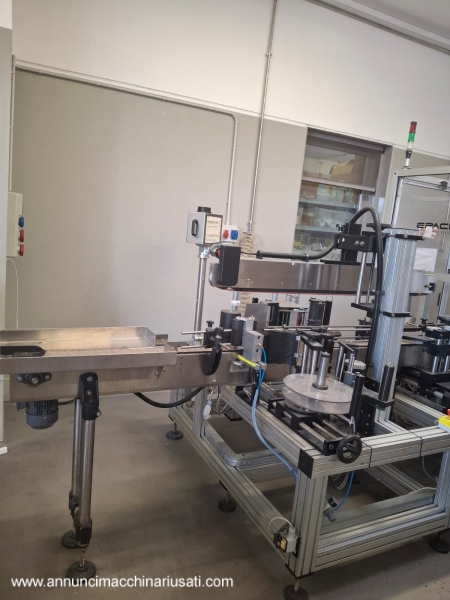

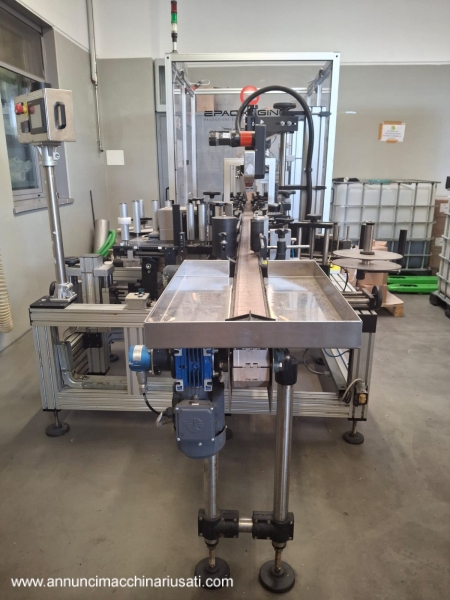

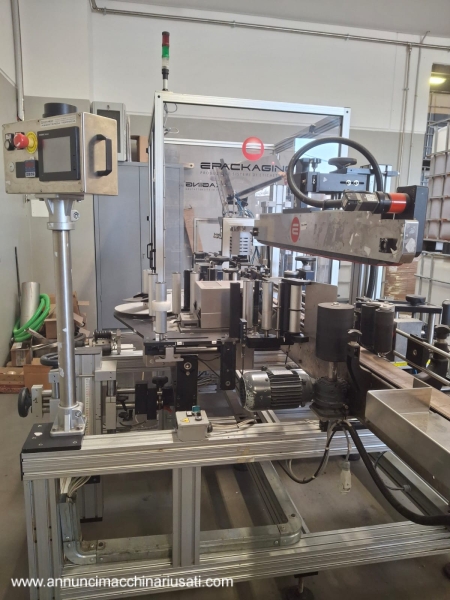

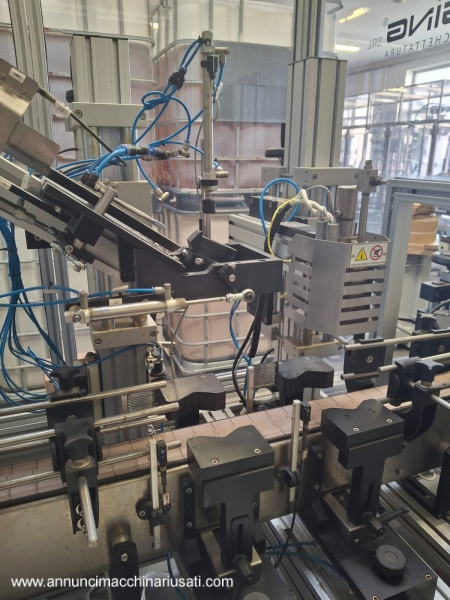

Used Self-Adhesive Labeling Machine with Shrink Capsule Applicator – 2000 bph – Overview Used E-Packaging Saturno 2T linear labeling line with integrated shrink capsule applicator and heat-activated printheads. Designed for industrial packaging in food and beverage manufacturing, this unit applies front and back self-adhesive labels and finishes bottles with shrink capsules in a compact, easy-to-use layout. Ideal for upgrading a used bottling line, it offers reliable labeling and capsule finishing at up to 2,000 bottles per hour. Technical specifications and performance data Model: E-Packaging Saturno 2T Year of manufacture: 2015 Configuration: 2 labelling stations (front + back) Labelling method: Pressure sensitive/self-adhesive (PSL) Capsule system: Capsule applicator with heat shrink heads Bottle flow: Linear Processed formats: 250 ml and 500 ml Nominal speed: approx. 2,000 bph (depending on format/label) Label placement: Front and back on cylindrical containers Accessories: Infeed spacer, mechanical centering, top stabilizer, roll-on/rotary smoothing device, capsule applicator, heat shrink head Dimensions (L×W×H): 4,500 × 1,140 × 2,250 mm Weight: ≈ 1,200 kg Power supply: 230 Vac, 50 Hz, 1+N Maximum power/absorption: 1.2 kW, 4 A Auxiliary voltage: 24 Vdc Advanced automation and control systems Two independent labeling stations with manual head adjustment for precise front/back alignment. Mechanical centering system ensures registration and repeatability from label to bottle without complex changeover parts. Bottle spacing and superior stabilization ensure consistent pitch and labeling accuracy at line speed. Capsule shrink heads with adjustable parameters for uniform capsule retraction and a high-quality finish. Production line integration capabilities Linear infeed/outfeed suitable for integration into a bottling line used in conjunction with fillers, cappers, and conveyors. Standard machine interfaces for upstream/downstream synchronization in industrial packaging environments. Adjustable guides and quick mechanical settings support quick changeovers between 250 ml and 500 ml bottles. Machine condition and maintenance history Condition: In production at the time of inspection, used and in full working order. Documentation: Original manuals and CE declaration available. Well-maintained unit from a food application, suitable for immediate use in beverage or condiment production. Operational Performance and Versatility: Reliable pre-owned solution for pressure-sensitive double-sided labeling and shrink-wrapping of capsules in a single pass. Consistent application quality on small-format glass or PET bottles typical of gourmet, vinegar, spirits, and beverage lines. Manually adjustable scales support repeatable recipes and minimal downtime during format changeovers. Installation and Site Preparation Requirements: Power Supply: 230 VAC, 50 Hz, single-phase (1+N); 1.2 kW installed power; 4 A max. Spatial Enclosure: 4.5 m long; Allow for service access approximately 1.14 m wide and 2.25 m high. Floor: Level industrial surface capable of supporting ≈1.2 t. Environment: Ventilated area for heat heads operation and label adhesive performance; Standard packing room conditions. Safety Standards and Compliance Certification Safety Features: Machine protection with interlocking doors and emergency stops on the main frame. Compliance: CE compliant according to EU Machinery and EMC Directives (documentation included). This Saturno 2T E-Packaging machine offers a compact, robust, and compliant solution for modernizing a used bottling line with accurate self-adhesive labeling and professional shrink-wrap application, optimized for industrial packaging and beverage production.
