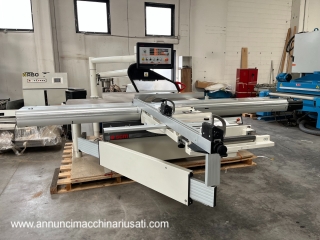

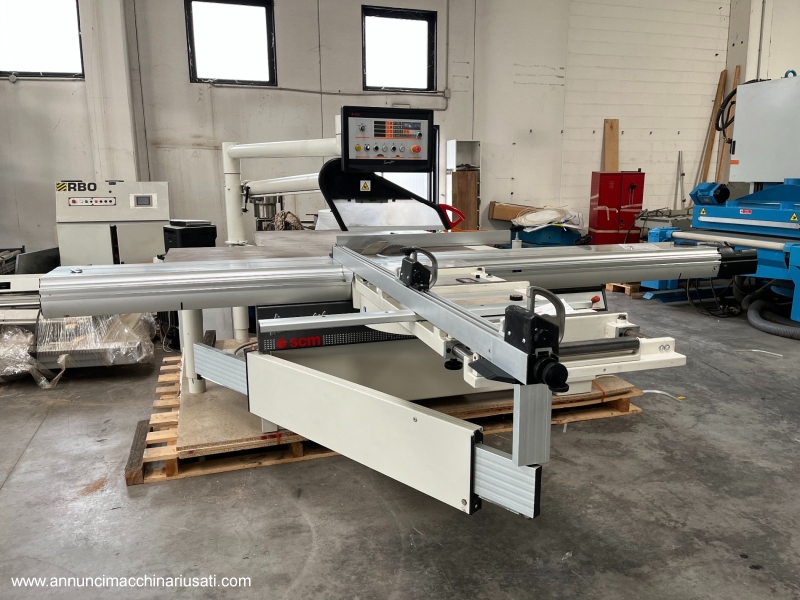

The SCM SI 400 EP Class panel saw is a professional woodworking machine, particularly appreciated for its precision and versatility. Being a used model, it represents an economical solution for those seeking high performance at an affordable price.
The SCM SI 400 EP Class features a robust and compact structure, with an extruded aluminum guide and a 3200 mm long sliding table. The machine includes a scoring blade to ensure precise, chip-free cuts and a main blade with a maximum diameter of 400 mm. The design is designed to reduce vibration and ensure long life, with a total weight of approximately 1614 kg. The main blade bore is 30 mm, while the scoring blade bore is 20 mm.
The SCM SI 400 EP Class saw features remarkable power and a variable-speed motor ranging from 3000 to 5200 rpm to accommodate a variety of cutting applications. The scoring blade reaches 8500 rpm, ideal for precision cuts on laminated panels and delicate materials.
The worktable is 3,200 mm wide, making it ideal for working with large panels. The 13 mm riving knife allows for easy separation of the material during cutting, increasing safety and efficiency.
For optimal use of the table saw, it is recommended to adjust the main blade to the thickness of the material being cut. The scoring blade must be precisely aligned to avoid chipping. The machine supports accessories such as table extensions, precision guides, and extraction systems to reduce dust generated during operation.
To determine the optimal blade speed, you can use the formula n = (v * 60) / (π * D) , where:
The SCM SI 400 EP Class is suitable for working solid wood, chipboard, MDF, and laminates.
Regular maintenance includes lubricating the sliding carriage and checking the drive belts. Safety regulations require the use of hand and head protection during operation, and if the machine does not comply with CE regulations, it is essential to equip it with updated safety systems to comply with current standards.
To evaluate a SCM SI 400 EP Class , it's important to check the work surface for wear, the proper functioning of the sliding carriage, and the integrity of the blade. The presence of original accessories and maintenance performed by the previous owner can increase the purchase value. The machine's weight (1614 kg) indicates a robust construction, which ensures stability during operation.
This squaring machine is ideal for carpenters and industries that produce custom furniture or wooden structures. Purchasing a used machine like the SCM SI 400 EP Class offers cost advantages, maintaining high performance with a low investment.
