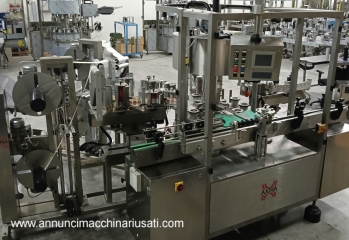

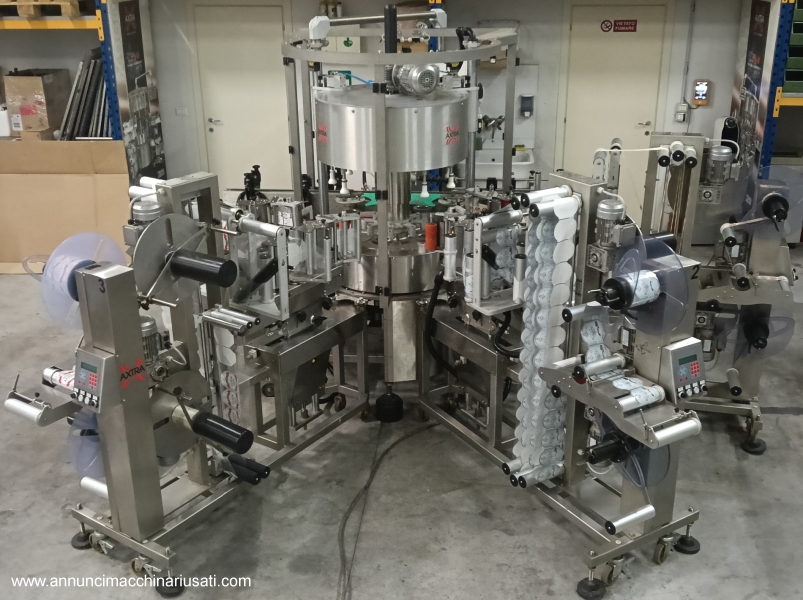

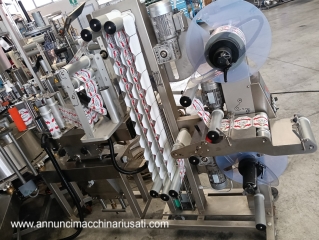

Technical Specifications & Performance Data This modular automatic labeling machine is configured for glass bottles and can be adapted for PET or other container materials. Designed for beverage production and industrial packaging applications, it is ideal for integration into a used bottling line or as a second-hand labeling solution within a complete production line. The machine features a carousel construction with variable speed control for flexible operation on multiple formats. Production speed: 5,000–8,000 bottles per hour (current configuration at 5,000 bph, up to 8,000 bph) Carousel: 720 mm pitch circle diameter, 9 plates, clockwise rotation Stations: Up to 4 labeling stations can be mounted Container shapes: Cylindrical and contoured containers (subject to dimensional verification) Container diameter range: 45–115 mm Container height range: 180–330 mm Available labeling technologies: Cold glue; Self-adhesive Non-stop self-adhesive carriages: 3 units, 400 mm rolls; maximum label height 2 x 195 mm and 1 x 95 mm Standard self-adhesive carriages: 3 units, 300 mm rolls; maximum label height 95 mm Cold glue stations: 2 units, completely overhauled Advanced Automation & Control Systems The drive and control architecture supports precise and reliable operation for high-quality labeling on a variety of containers. The main carousel is driven by an asynchronous motor with inverter for uniform variable speed, while the label application modules use stepper motors for precise feed control. Main drive: Asynchronous motor with inverter (variable speed) Label feed: Electromechanical with stepper motors Vertical adjustment: Electric vertical adjustment of the upper carousel Optical centering provision: Provision for centering via fiber optics and/or mark reader Non-stop capability: Self-adhesive carriages with pre-unwinder and rewinder Production line integration capability Designed for seamless inclusion in a bottling equipment line, this machine can operate in-line or as a stand-alone unit. The modular frame accommodates various labeling methods and placements, allowing for quick adaptability to the varying production requirements common in beverage manufacturing and industrial packaging. Compatible with upstream/downstream conveyors and inspection systems Quick changeover between cold glue and self-adhesive modules Multi-format flexibility for cylindrical and shaped bottles Designed to handle PET and glass bottles Suitable for integration into complete packaging machinery and production lines Machine condition & service history The main machine has been used for internal testing and is essentially in new condition. The labeling stations have been overhauled to ensure reliability and performance. Main machine use: In-house test machine; essentially new. Cold glue stations: Completely overhauled (bearings, oil, rubber glue roller replaced). Self-adhesive stations (non-stop and standard): Completely overhauled (springs and rubber rollers replaced). Operational status: Ready for use. Operational performance & versatility. This labeling machine supports a wide range of beverage manufacturing applications. With cold glue and self-adhesive options, it can apply front and back labels with high precision. The optical centering feature further improves label placement accuracy on decorated or embossed containers. Front and back label application capability Cold glue modules mechanically driven by the carousel gear for robust synchronization Self-adhesive modules with precise dispensing driven by stepper motors Optional optical centering via fiber optics or mark reader Suitable for labeling wine, beer, juice and water bottles in the dimensions indicated Installation Requirements & Site Preparation The machine's compact carousel design supports flexible layout options in both used and new bottling lines. Site preparation must include appropriate utilities and access for module changeovers. Space planning around a carousel with a 720 mm pitch circle and 9 plates Power supply for the main drive inverter and labeler stepper motors Interfaces for conveyor belts and guards are provided Easy access for station assembly and format changeovers (up to 4 stations) Safety Standards & Compliance Certifications Designed for industrial packaging environments, the system supports the integration of standard operator guarding and safety circuits. Optical centering sensors can be added while maintaining typical beverage machine guards and safety practices. Operator protection with guards and interlocks according to industry standard practices. Emergency stop interfaces for in-line integration. Hygienic machine design suitable for food and beverage environments
