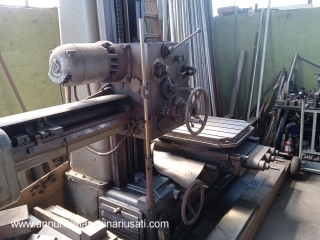

Technical Data Sheet: Pama AL-60 Manual Boring Machine

Introduction

The Pama AL-60 manual boring machine is a used machine tool known for its robustness and precision in boring operations. This model is particularly appreciated for its ability to perform detailed, high-quality machining. Thanks to its versatility and durability, the Pama AL-60 boring machine is an ideal choice for those seeking a reliable machine at a reasonable price on the used market.

General Features

The Pama AL-60 boring machine offers a series of technical specifications that make it suitable for a wide range of applications. Here's a summary of its main features:

• Table Dimensions : 650 mm x 750 mm
• X-axis travel : 600 mm
• Y-axis travel : 400 mm
• Z-axis travel : 550 mm
• Spindle Diameter : 60 mm
• Spindle Speed : Various adjustable speeds
• Spindle Connection : ISO 40
• Spindle Motor Power : Approx. 4 kW
• Overall Dimensions : Approx. 2000mm x 3000mm x 1800mm
• Weight : Approximately 4000 kg

Components and Structure

The Pama AL-60 is designed with a robust structure that guarantees stability and precision during machining:

• Work Table : The table measures 650mm x 750mm, providing a solid base for mounting and supporting workpieces. It features holes for attaching clamps and support devices.
• Chuck : With a diameter of 60 mm and an ISO 40 connection, the chuck is compatible with a variety of tools and ensures adequate cutting capacity.
• Movement Axes : The X, Y and Z axes offer generous travel, allowing you to machine medium-sized pieces with good precision.
• Motor : The approximately 4 kW motor provides the power needed to perform boring operations efficiently.

Mechanical Characteristics

The Pama AL-60 boring machine is characterised by:

• Precision : The machine offers high precision thanks to its rigid structure and high-quality components.
• Versatility : Adjustable spindle speeds and axis travels allow for a variety of boring and milling operations.
• Robustness : The solid construction ensures long life and low wear of the components.

Usage Procedure

To use the Pama AL-60 Boring Machine, follow these steps:

1. Preparation:

   • Make sure the machine is properly installed and leveled.
   • Check the lubrication level and the general condition of the components.

2. Setting:

   • Place the workpiece on the table and secure it using clamps or holding devices.
   • Adjust axis travels and spindle position to meet machining specifications.

3. Operation:

   • Set spindle speed and other machining variables based on the material and tool used.
   • Start the machine and monitor the machining process to ensure the part meets the required tolerances.

4. Control and Conclusion:

   • After machining, check the finished piece for accuracy and quality.
   • Turn off and clean the machine, and check for any signs of wear or maintenance needs.

Matching accessories

The Pama AL-60 Boring Machine can be equipped with various accessories to expand its capabilities:

• Cutting Tools : Various types of tools can be mounted on the ISO 40 shank to perform different operations.
• Measuring Devices : Measuring systems such as depth gauges and comparators can be added to increase accuracy.
• Fixing Accessories : Additional clamps and holding devices can be used to ensure a secure hold of the workpiece.

Formulas for Optimal Use

To get the best performance from the Pama AL-60, consider the following formulas:

• Cutting Speed ​​(Vc) : Vc = π × D × n / 1000

  • D = Tool diameter (mm)
  • n = Speed ​​(rpm)

• Feedrate (f) : f = Vc / (n × D)

• Depth of Cut : Determined based on the material and tool used.

Workable Materials

The Pama AL-60 boring machine can work various materials, including:

• Steel : Suitable for strong and structural components.
• Aluminum : Ideal for lightweight, easy-to-work parts.
• Special Alloys : Can be used for materials requiring specific mechanical properties.

Maintenance

To keep your Pama AL-60 Boring Machine in good condition, follow these tips:

• Lubrication : Check and refill lubricant levels regularly to ensure smooth operation of the axes and spindle.
• Periodic Check : Check the alignment of the axes and the condition of the spindle. Make sure that the guides and mechanisms are free from wear.
• Cleaning : Keep the machine clean and free of debris to avoid buildup that can affect accuracy.

Evaluation of used cars

When purchasing a used Pama AL-60, consider:

• Visual Inspection : Check the machine for signs of wear, structural damage, or repairs made.
• Test Run : Test the machine to ensure all functions are operational and that there are no mechanical problems.
• Documentation : Make sure there are manuals and maintenance logs available.

Sectors of Use

The Pama AL-60 boring machine is used in various industrial sectors:

• Mechanical Industry : For the production of precision components and the machining of complex pieces.
• Automotive Sector : Used in the machining of engine and transmission components.
• Aerospace Industry : For the production of high-precision parts and for critical applications.

Advantages of Buying Used

Buying a used Pama AL-60 offers significant advantages:

• Low Cost : Lower price than a new machine, allowing you to get a high quality machine at a low cost.
• Immediate Availability : The used machine is often ready for use without long waiting times.
• Reliability : Proven and reputable model, with a long history of reliable performance.

In conclusion, the Pama AL-60 Manual Boring Machine, with its robust specifications and proven reliability, is an excellent choice for those seeking a used machine capable of delivering high performance at an affordable price. With proper maintenance and a careful evaluation of used machinery, this machine can guarantee excellent durability and high-quality results in mechanical machining.
