Data Sheet: Gigant GTP 200 2E Hydraulic Press

Introduction

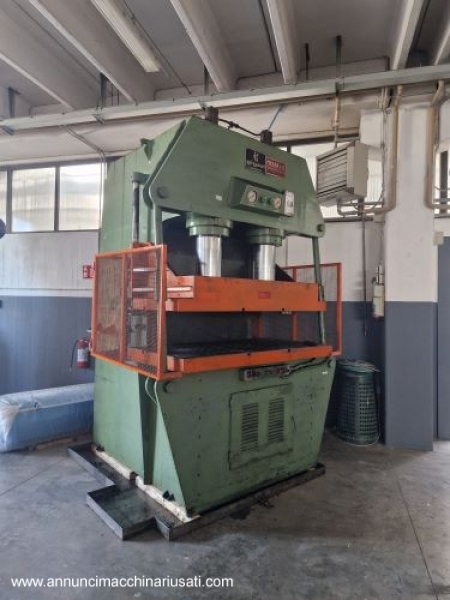

The Gigant GTP 200 2E hydraulic press, used but in excellent condition, is a versatile and robust machine designed for pressing and forming operations in industrial environments. With a 200-ton capacity and a host of advanced features, this model is ideal for a variety of applications, from metalworking to the production of complex components.

Technical Details

Make and Model: Gigant GTP 200 2E
Year of Construction: Specify if known
Condition: Used, working
Internal Code: Specify if known

Components and Construction

• Construction: The Gigant GTP 200 2E press is constructed with a solid steel frame, designed to support heavy loads and ensure stability during operation.
• Pistons: The machine is equipped with two hydraulic pistons, which provide the pressing force required for heavy-duty operations and ensure even pressure distribution.
• Work Plan:
  • Dimensions: 1800 x 850 mm
  • Club:
    • Dimensions: 1800 x 700 mm
• Blanking Pad:
  • Number: 3
  • Area Dimensions: 1200 x 600 mm
  • Stroke: 300 mm
  • Thrust: 60 tons
• Mace Extractor:
  • Type: Mechanical
  • Extractor Force: 20 tons
  • Extractor Stroke: 100 mm

Measurements and Performances

• Total stroke: 500 mm
• Maximum Print Point Light (PMS): 800 mm
• Machine weight: 13 tons

Accessories and Additional Features

• Blanking Pads: Three blanking pads with a total thrust of 60 tons and a stroke of 300 mm help position and support the material during pressing.
• Mechanical Extractor: The mechanical extractor in the ram facilitates the removal of the machined parts, with an extraction force of 20 tons and a stroke of 100 mm.
• Safety System: The baler is equipped with advanced safety systems to ensure safe operation and protect the operator.

Procedure for Use

1. Material Preparation: Place the material to be processed on the press bed and align it using the blanking pads. Make sure the material is securely fastened and aligned.
2. Machine Setup: Configure the required pressing settings, including stroke and force. Make sure the cushions and extractor are correctly positioned.
3. Pressing: Start the press and monitor the pressing process. The hydraulic pistons will apply the necessary force to complete the operation.
4. Removing the Workpiece: Use the mechanical extractor to remove the workpiece from the ram.

Mathematical Formulas for Optimal Use

• Pressing Force (F):
  F=P×AF = P \times A $F$ $=$ $P$ $\times$ $A$ Where:

  • PP $P$ is the applied pressure.
  • AA $A$ is the area of ​​the worktop.

• Total Stroke (S):
  S=D−HS = D - H $S$ $=$ $D$ $-$ $H$ Where:

  • DD $D$ is the total distance of descent.
  • HH $H$ is the minimum height of the working area.

Workable Materials

The Gigant GTP 200 2E hydraulic press is designed to process a wide range of materials, including:

• Carbon Steel: For structural and industrial components.
• Stainless Steel: For applications requiring corrosion resistance.
• Aluminum and Alloys: For lightweight, precision components.
• Plastic and Composite Materials: For special and customized processes.

Maintenance and Evaluation of Used Vehicles

• Maintenance:

  • Regular Check: Inspect the hydraulic system, pistons and mechanical components for any signs of wear or damage.
  • Lubrication: Apply lubricant to moving parts and pistons to ensure smooth, trouble-free operation.
  • Check Safety Systems: Check safety devices and make sure they are working properly.

• Used Appraisal:

  • Reconditioning Check: Make sure that major components such as pistons and blanking pad have been well maintained or reconditioned.
  • Condition Check: Examine the work surface, hammer, and extractor for signs of wear or damage.

Sectors of Use

The Gigant GTP 200 2E hydraulic press is used in various industrial sectors, including:

• Metalworking Industry: For the production of metal and structural components.
• Automotive Sector: For the production of automotive parts and large components.
• Sheet Metal Working Industry: For pressing and forming applications of thick and heavy materials.

Why Buy It Used?

• Low Cost: Buying a used baler like the Gigant GTP 200 2E is cheaper than buying a new one, offering excellent value for money.
• Reliability: Presses of this type are designed to last and, if properly maintained, offer reliable performance.
• Immediate Availability: Buying a used machine allows you to start working right away, without the long wait for a new unit to be produced.

Conclusion

The Gigant GTP 200 2E hydraulic press is a high-quality used machine, ideal for heavy-duty and demanding industrial applications. With its advanced features and robust construction, it represents a great choice for companies seeking reliable, high-performance equipment at a competitive price.
