Comec 2-Spindle 250mm CNC Vertical Lathe

Introduction

The Comec 250 mm 2-spindle CNC vertical lathe is a high-precision and robust used machine, designed to meet the machining needs of medium to large-sized parts. This machine is ideal for industrial applications requiring high precision and processing capacity. Thanks to its Fanuc numerical control and dual-spindle configuration, it offers versatility and efficiency in turning operations.

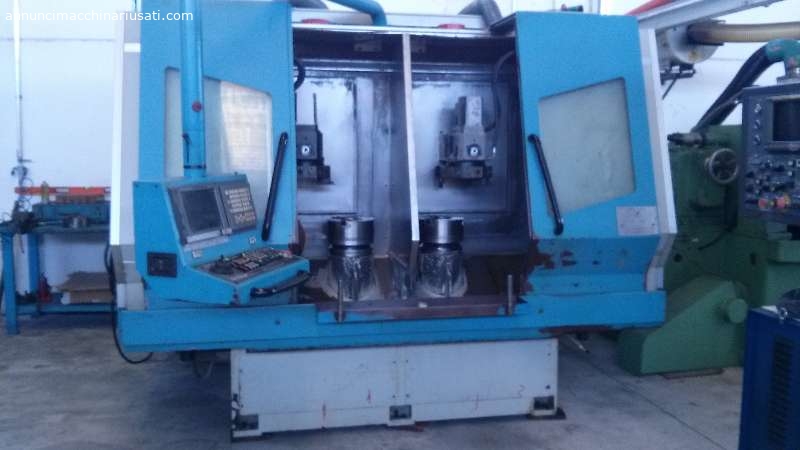

Visual Appearance and Construction

The Comec vertical lathe is a solid and well-structured machine, with a robust construction designed to ensure stability and durability. The design features a solid base and body that house the spindles and control system. The presence of two 250 mm spindles allows for simultaneous machining of workpieces, improving the machine's productivity and versatility.

Main components:

• Spindles: Two 250mm spindles, ideal for medium to large sized workpieces.

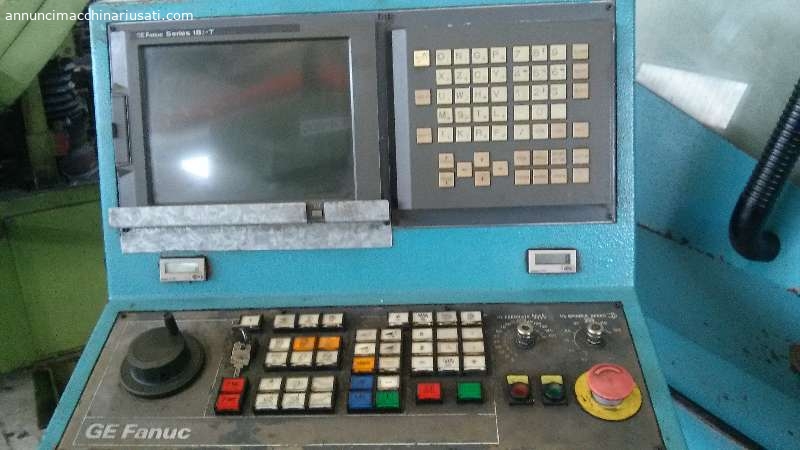

• Control System: Fanuc CNC, known for its reliability and precision.
• Base and Structure: Sturdy construction to ensure stability during operation.

Technical Specifications

• Mandrel Diameter:

  • Diameter: 250 mm for each spindle

• Processing Capacity:

  • Maximum turning diameter: Suitable for workpieces with diameters up to specific dimensions indicated by the manufacturer.
  • Maximum turning height: Ability to machine workpieces of significant height, depending on specifications.

• Control System:

  • Make and Model: Fanuc CNC, renowned for its precision and ease of use.

• Components and Accessories:

  • Tool holders: Included in the supply, they can be customized according to processing needs.
  • Chip Evacuator: System for removing chips and keeping the work area clean.

Usage Procedure

1. Machine Preparation:

   • Make sure the lathe is properly aligned and leveled. Check the Fanuc CNC for proper operation and ensure all spindles and tool holders are in place.

2. Loading the Piece:

   • Place the workpiece on the spindles and secure it securely using the supplied clamping systems. Make sure the workpiece is properly aligned to avoid vibrations or machining errors.

3. CNC Setup:

   • Use the Fanuc CNC to program machining parameters, such as rotation speed and axis travel. Enter the necessary data and verify the settings.

4. Execution of the Process:

   • Start the turning process and monitor the operation through the CNC. Make any necessary adjustments to optimize the quality of the workpiece.

5. Final Inspection:

   • Once the machining is complete, inspect the piece to ensure it meets the required specifications. Remove the piece and proceed with cleaning the machine.

Matching Accessories and Equipment

• Turning Tools: To work different types of materials and obtain different finishes.
• Measuring Devices: To ensure precision in machining and maintain tight tolerances.
• Additional Supports: For pieces of non-standard shape or size, improving stability during machining.

Formulas for Optimal Use

• Cutting Speed ​​(Vc): Calculated to obtain an optimal result, it can be determined with the formula:
  Vc=π×D×N1000Vc = \frac{\pi \times D \times N}{1000}
  $V$ $c$ $=$ 1000 π × D × N ​where DD $D$ is the diameter of the workpiece and NN $N$ is the rotation speed in rpm.

• Feed per Revolution (f):
  f=VN×1000f = \frac{V}{N} \times 1000
  $f$ $=$ N V ​× $1000$ where VV $V$ is the feed and NN $N$ is the rotation speed.

Workable Materials

The Comec vertical lathe is suitable for working a wide range of materials:

• Metals: Steel, aluminum, copper and special alloys.
• Composite Materials: Depending on specifications and tools used.

Maintenance

• Regular Cleaning: Remove chips and dust after each use to maintain optimal operation.
• Lubrication: Be sure to keep components well lubricated according to the manufacturer's specifications.
• Periodic Inspection: Check the wear of tools and spindles to prevent problems during machining.

Evaluation of Good Used

To evaluate the quality of a used lathe:

• Check the General Condition: Visually examine the machine for any damage or wear.
• Test Operation: Run tests to ensure the lathe is operating properly and the Fanuc control is running smoothly.
• Review the Documentation: Make sure the manuals are present and that the machine has a declaration of conformity.

Sectors of Use

The Comec vertical lathe finds application in various sectors:

• Mechanical Industry: For the machining of large and heavy components.
• Aerospace Industry: For high-quality, precision parts.
• Machining Shops: Used for special and custom applications.

Advantages of Buying Used

Buying a used Comec lathe has several advantages:

• Lower Price: A used machine is generally cheaper than a new one.
• Lower Depreciation: The machine has already undergone initial depreciation, offering a higher value.
• Reliability: With good maintenance, a used lathe can continue to provide reliable performance.

In conclusion, the Comec 250 mm 2-spindle CNC vertical lathe is an excellent choice for those looking for a high-quality used machine with robust machining capabilities and advanced CNC control. It's ideal for industrial applications and offers good value, especially considering the cost advantage of a used purchase.
