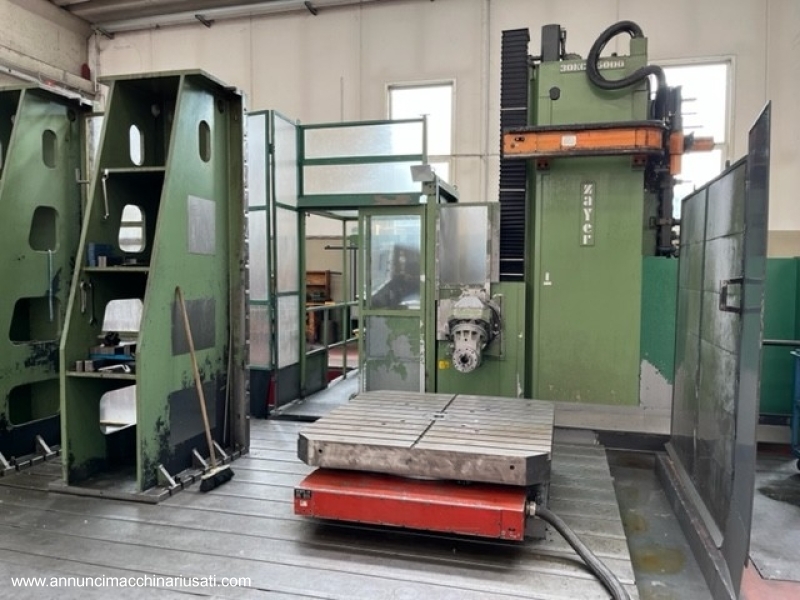

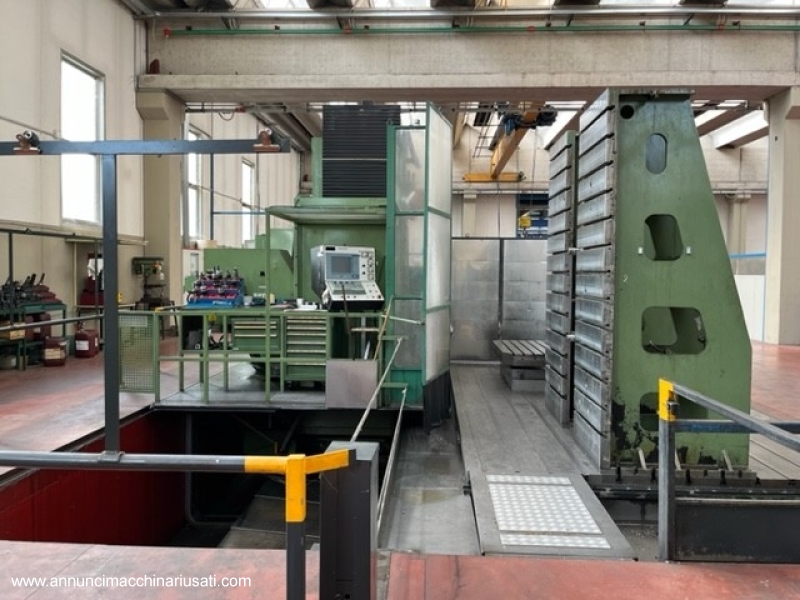

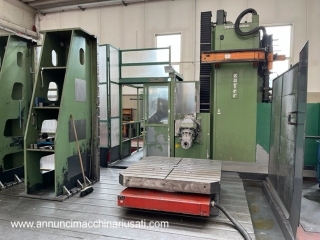

ZAYER 30 KCU 5000 - Used Machining Center from 1998: Details and Features
The ZAYER 30 KCU 5000 machining center is a high-quality used machine, designed to offer high performance and precision in mechanical machining. Despite being built in 1998, this machine continues to be an excellent choice for companies seeking a versatile and robust solution for large-scale machining. If you're looking for a used machining center that combines reliability, power, and precision, the ZAYER 30 KCU 5000 is definitely the machine for you.
Brand : ZAYER
Model : 30 KCU 5000
Year of construction: 1998
Machine type : Vertical machining center
Condition : Used machine, in good working condition
Numerical control : ESC CNC 2400 (a control system that ensures precise and programmable operations)
X-axis travel : 5000 mm – Allows for large-scale machining, suitable for large pieces.
Y-axis travel : 2500 mm – Allows for a good range of motion, perfect for milling operations on bulky materials.
Z-axis travel : 1250 mm – Optimal for deep machining on thick and large-volume materials.
Spindle : ISO50 DIN 69871 – The ISO50 spindle is one of the most widely used standards for machining centers, which guarantees stability and precision during milling operations.
Rotary table : Taboni 720 1500x1500 – Large rotary table that allows for multi-sided machining of the pieces without the need for manual repositioning.
Table load capacity : 12 tons – The table load capacity is ideal for heavy workpieces, giving the machine great versatility.
Rotating head : The rotating head is capable of 360° rotation, allowing for processing at different angles and optimising processing times.
Tool magazine : 30 positions – This large magazine allows for quick tool changes without prolonged production interruptions, improving machining efficiency.
The ZAYER 30 KCU 5000 is a machining center that offers remarkable flexibility thanks to its robust structure and ability to machine large workpieces. With its 360° rotating head , it is possible to machine on different sides of a workpiece without the need for repositioning, optimizing production times.
The use of ISO50 DIN 69871 as the spindle standard allows for the use of high-quality tools, ideal for precision milling. The 30-slot tool magazine facilitates quick tool changes, ensuring reduced downtime and increasing productivity.
The ESC CNC 2400 numerical control offers simple programming and precise machining management, with the possibility of working on complex and large-format pieces thanks to the long axis travels.
The ZAYER 30 KCU 5000 is capable of working on a wide range of materials, including:
Steel (both carbon and stainless)
Aluminum
Special alloys
Plastics and composites
Thanks to its power and versatility , it is suitable for working with both light and heavy materials, with the possibility of performing milling, drilling, and other complex operations.
The machine is equipped with a series of accessories that expand its operational capabilities. It can be combined with specific tools for milling and drilling particularly hard materials, as well as cooling systems and chip evacuation systems to improve efficiency and safety.
The ZAYER 30 KCU 5000 is a robust and durable machine that requires regular maintenance to ensure maximum performance. Here are some tips for proper maintenance:
Regular lubrication : The lubrication system must be checked periodically to prevent the axis movements from becoming imprecise.
Movement check : Periodically check the travels of the X, Y and Z axes, to ensure that there are no play or inaccuracies that could compromise the quality of the work.
Checking the cooling system : If used, the cooling system must be cleaned regularly to avoid the risk of overheating during processing.
Regarding safety regulations, it is important that the operator complies with current legal provisions regarding workplace safety. If there are no CE markings, it is advisable to conduct an assessment and adapt the machine to current regulations, perhaps by integrating additional protections or safety systems.
The ZAYER 30 KCU 5000 is mainly used in the following sectors:
Metalworking sector : For the machining of large metal parts, including components for industrial machinery.
Automotive : Machining of automobile parts, such as engine or chassis components.
Aerospace : Production of components for aircraft and spacecraft, thanks to the required precision.
Energy sector : Manufacturing of parts for industrial plants and power plants.
Buying a ZAYER 30 KCU 5000 represents an advantageous opportunity for several reasons:
Reduced cost : By buying used, you save significantly compared to new, while maintaining high quality performance.
Long-lasting : ZAYER is a brand known for its reliability and durability, even in used machinery.
Proven Reliability : The machine has already been field tested and if properly maintained, will continue to deliver excellent operating results.
The ZAYER 30 KCU 5000 machining center , although used, offers an excellent opportunity for companies seeking a precise, robust machine capable of machining large workpieces. With extensive axis travel, a 360° rotating headstock, and a significant load capacity, this machine is ideal for a variety of industrial applications. Buying a used machine with proper maintenance is an excellent way to save money without compromising performance.
