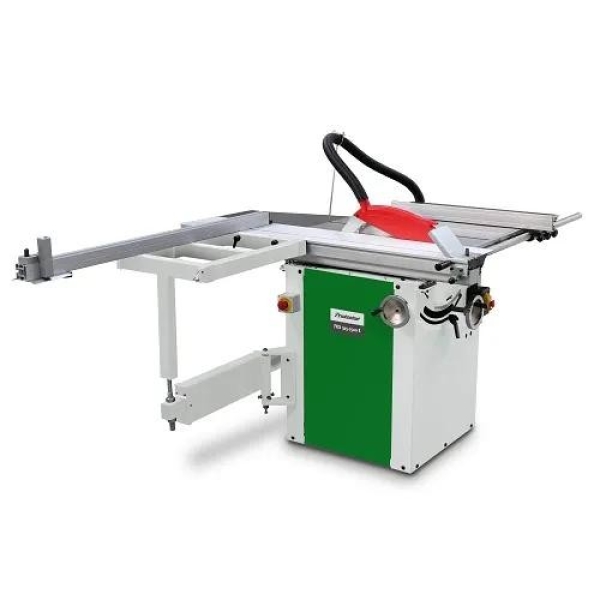

The Holzkraft FKS 315-1500 circular saw is an excellent machine for precision woodworking, designed to ensure optimal results in professional work environments. It is a robust circular saw with a gray cast iron work table that reduces vibration, improving stability and precision during operation. With a compact design, it is perfect for workspaces requiring efficiency and reliability. The FKS 315-1500 model is equipped with a long and sturdy cutting carriage that allows for cutting operations up to 1370 mm in length, and a cutting width of up to 940 mm with the repair guide.

Main technical specifications:

• Dimensions : Length approximately 3480 mm, width 2430 mm, height 1270 mm.
• Weight : Approximately 202kg, solid construction ensures stability during use.
• Motor : Motor power of 3 kW, with a power supply of 400 V and a mains frequency of 50 Hz, ideal for intensive applications.
• Main blade : Diameter of 315 mm, with a rotation speed of 4250 min⁻¹. The maximum cutting height is 100 mm at 90°, reducing to 75 mm at 45°.
• Blade Angle : Adjustable between 90° and 45°, allowing for precise angled cuts.
• Other accessories : The saw is supplied with a blade guard with a connection for the dust extraction system, and a telescopic slide that can be tilted up to 45° to both sides, ensuring operational flexibility.

The Holzkraft FKS 315-1500 is particularly suitable for cutting large wood panels, thanks to its ability to accommodate considerable workpieces. The use of a cast iron worktable and a finely adjustable aluminum rip fence contribute to a clean and precise cut.

How to use:

1. Setting Up the Machine : Start by fitting the desired blade, then adjust the blade height using the knob for quick and safe adjustment.
2. Cutting : Place the material on the worktable, adjust the side guide and telescopic slide to properly align the workpiece. Use the dust extraction system to collect the dust.
3. Safety : It is essential to always use the blade guard and follow safety guidelines, such as the use of personal protective equipment (PPE), to prevent injury.

Maintenance and safety:

For optimal maintenance, the machine should be cleaned regularly, and the blades sharpened and replaced when necessary. It is important to periodically check the extraction system and electrical connections. Since the Holzkraft FKS 315-1500 is not specifically labeled as CE compliant, it is recommended to adapt it to local safety regulations, such as installing additional guards and checking the extraction system in compliance with fire regulations.

Sectors of use:

This circular saw is perfect for carpenters, joiners, and small woodworking businesses where precision and durability are essential. It's ideal for cutting solid wood panels, plywood, and similar materials, making it a great investment, especially if purchased used, as it offers high performance at a low cost.

Buying a Holzkraft FKS 315-1500 can be a profitable choice: it allows you to save significantly without compromising on quality and performance, provided that you perform a thorough inspection of the machine before purchasing.
