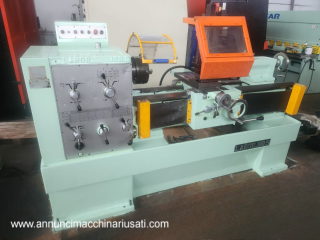

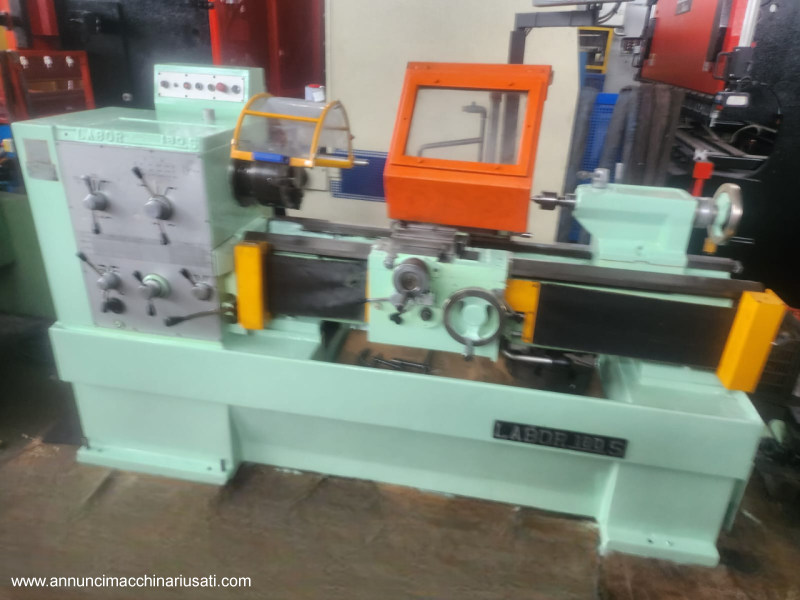

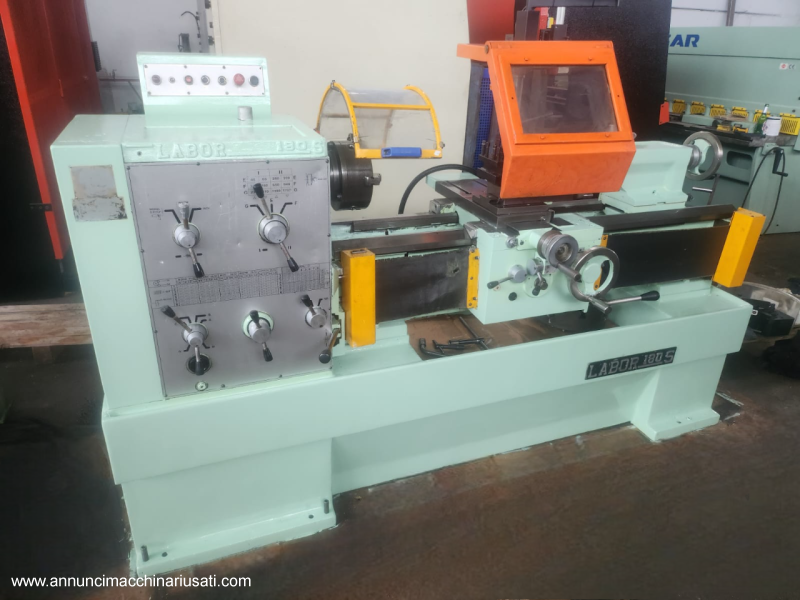

Padovani Parallel Lathe Mod. Labor 180 S
Make and Model: Padovani Parallel Lathe Mod. Labor 180 S
General Description
The Padovani Labor 180 S parallel lathe is a precision machine tool widely used in various industrial sectors for processing metals and other materials. This used lathe is known for its robustness and reliability, making it a great choice even on the used market. Here's a detailed overview of its features, components, and operating instructions.
Components and Features
- Height of tips: 180 mm
- Distance between tips: 1000 mm
- Maximum turning length: 1000 mm
- Turning diameter on the bench: 360 mm
- Turning diameter on the carriage: 180 mm
- Bar clearance: 51 mm
- Maximum spindle speed: 1800 rpm
- Steerer tube travel: 170 mm
- Tailstock quill diameter: 52 mm
- Machine weight: 1000 kg
- Overall dimensions of the machine: L 1850 x W 500 x H 1340 mm
Composition and Structure
The Padovani Labor 180 S parallel lathe is built with a solid cast iron frame that provides stability and reduces vibration during machining. The machine is equipped with a sturdy slide and carriage that allow for precise movement of the workpiece. The spindle, with a maximum speed of 1800 rpm, is designed to offer a wide range of turning operations. The quill, with a 170 mm stroke and a 52 mm diameter, contributes to versatile and high-precision machining.
Use and Procedure
To use the Padovani Labor 180 S parallel lathe, follow these steps:
- Preparation: Make sure the lathe is properly assembled and leveled. Check that all moving parts are lubricated and in working order.
- Mounting the workpiece: Clamp the workpiece into the chuck or tailstock, making sure it is well centered and locked.
- Speed Setting: Adjust the spindle speed according to the type of machining and the workpiece material.
- Turning: Perform turning according to the chosen settings and constantly monitor the machining progress to ensure accuracy.
Compatible Accessories
The Padovani Labor 180 S parallel lathe can be equipped with various accessories to expand its capabilities, including:
- Additional spindles: For processing workpieces of different sizes and shapes.
- Interchangeable tailstocks: To support longer and more complex workpieces.
- Fixing devices: Such as vises and seats for greater safety and precision.
Maintenance
To keep your Padovani Labor 180 S parallel lathe in good condition, it is important to follow a regular maintenance schedule:
- Lubrication: Make sure all lubrication points are regularly greased.
- Cleaning: Clean the lathe after each use to remove chips and debris.
- Periodic checks: Check the alignment and balance of the machine, and check for wear on the main components.
Checking for a Good Used Car
When purchasing a used Padovani Labor 180 S parallel lathe, it is essential:
- Inspect: Check the overall condition of the machine, including signs of wear and any damage.
- Test Operation: Test the machine to ensure all functions are operational.
- Request documentation: Request maintenance history and any repairs performed.
Sectors of Use
The Padovani Labor 180 S parallel lathe is mainly used in the following sectors:
- Metalworking: For the production of machinery components and parts.
- Automotive industry: For the machining of engine and transmission parts.
- Aerospace industry: For the production of precision parts.
Advantages of Buying Used
Buying a used Padovani Labor 180 S parallel lathe can be advantageous for the following reasons:
- Reduced cost: The purchase price is generally lower than new.
- Reliability: Used models, if well maintained, can offer reliable performance.
- Value for money: You can often get a high-quality machine at a fraction of the price of new.
In conclusion, the Padovani Labor 180 S parallel lathe is a robust and versatile machine tool, ideal for a variety of industrial applications. Choosing a used model can be an excellent opportunity to obtain quality equipment at a competitive price.
Used machinery in good working condition. Viewable at our associated warehouses. Transport and logistics services throughout Italy and abroad, ensuring a hassle-free purchasing experience. For further details, contact us or search for "Konzu srls" online. Code 240974
