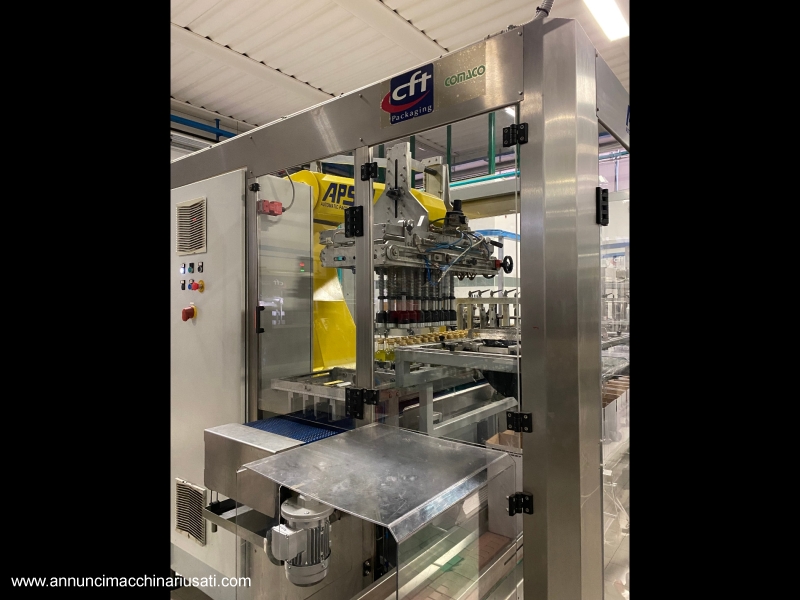

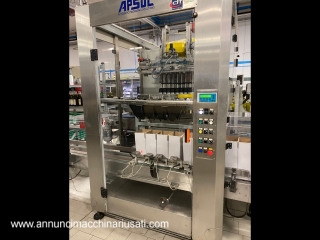

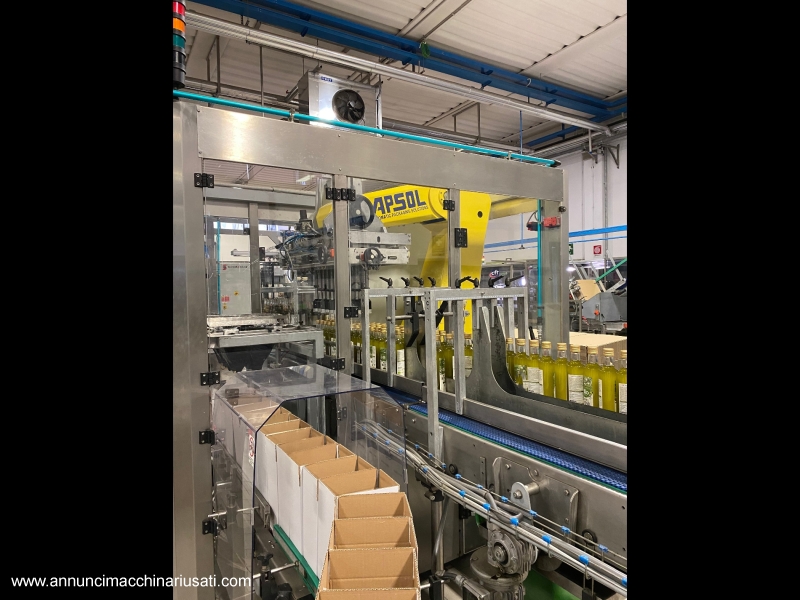

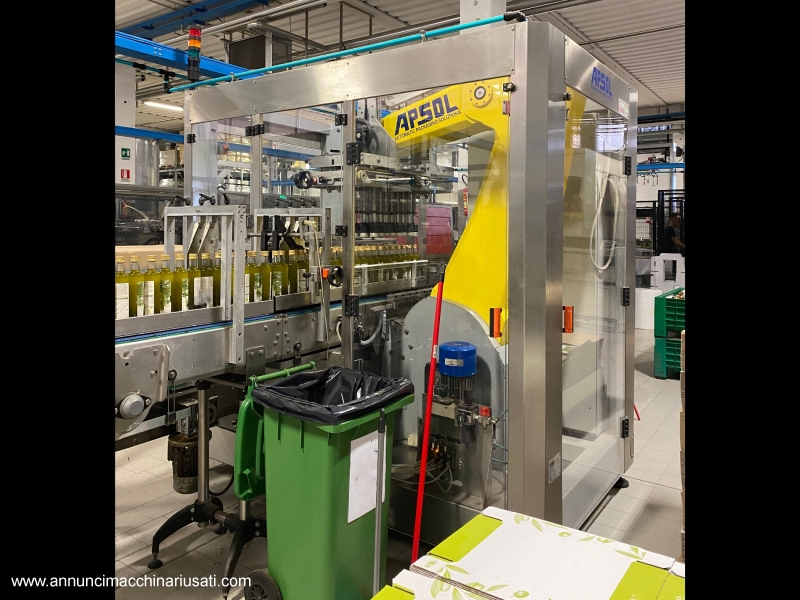

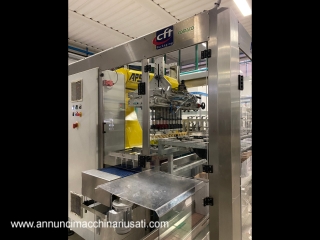

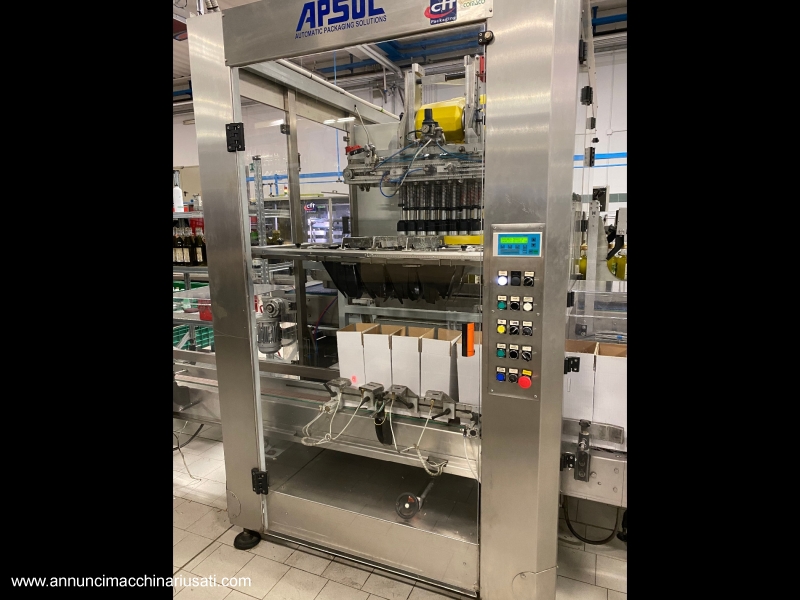

Used Incartonatrice APSOL MCP2 3500 BPH General characteristics of the Used Used Used APSOL MCP2 3500 BPH APSOL built the Used Incartonator APSOL MCP2 3500 BPH in 2007 as an automatic incarter for glass bottles. This model guarantees reliable operation and supports a wide range of packaging configurations. As a result, high efficiency bottling lines can easily integrate this unit, as it remains fully operational and ready for use. In addition, its compact design allows manufacturers to optimize space on the ground without compromising performance. The performance and configuration of the format The used incartonator APSOL MCP2 3500 BPH works up to 3500 bottles per hour, maintaining constant production even in demanding production times. Specifically, it treats bottles in the formats of 0.50 l, 0.75 l and 1 l, packaged in 4 × 3 and 3 × 2 coffers. Therefore, operators can go from one format to another with minimal inactivity times. As a result, the machine offers significant flexibility for wine producers, oil and other liquids in glass bottle. In addition, the system supports both small and medium production lots, which is added to its versatility. Socket system and number of heads, the socket system uses bell -suction aspiration heads with air chambers, which apply a pneumatic pressure to gently move the glass containers. In this way, the machine prevents damage during the withdrawal and positioning process. In particular, it is equipped with two socket heads operating in parallel, which significantly increases productivity. In addition, the double head system distributes the workload uniformly, thus improving mechanical longevity. In particular, this configuration proves to be effective in the movement of fragile or high bottles. Automation and control system The programmable logical controllers (PLC) Omron and Toshiba control the Used Incartonator APSOL MCP2 3500 BPH, ensuring high automation reliability and ease of maintenance. In addition, the technicians can quickly configure the parameters thanks to the intuitive interface. For this reason, the machine adapts without problems to different production scenarios. Operators access the control interface on the right side, which improves ergonomics and reduces operational fatigue. Equally important, PLC architecture allows remote diagnostics and rapid intervention in case of failures. Safety, size and power supply The machine is equipped with accident prevention protections compliant with European regulations, thus guaranteeing the protection of the operator. To illustrate, it is equipped with interblorated doors and emergency stop systems. It measures 3000 mm in length, 2400 mm deep and 2500 mm in height. In terms of energy, the unit works with a feeding of 400 V, 50 Hz and consumes 11 kW. Overall, these features make the Used Incartonator APSOL MCP2 3500 BPH a robust and scalable choice for bottling lines of medium-high capacity. Ultimately, the model combines mechanical reliability with flexible automation, making it a strategic investment for modern structures.
