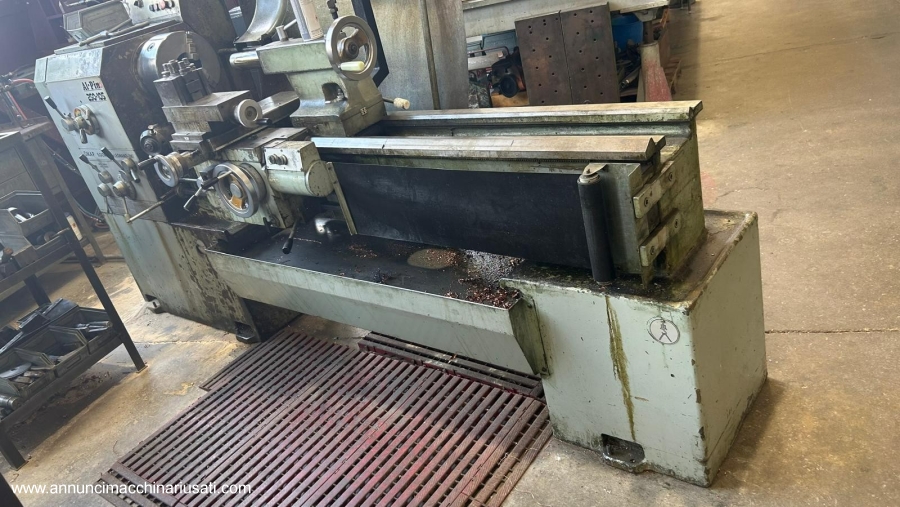

Detailed technical data sheet of the Alpin parallel lathe 180 x 1000

Brand and model : Alpin 180 x 1000

Type : used parallel lathe used

Year of production : not specified

Condition : used, in excellent condition

Main Technical Characteristics:

• Pin height : 180 mm

• Distance between the tips : 1000 mm

• Workproof diameter on the desk : 360 mm

• Working diameter on the cart : 230 mm

• Bar passing diameter : 38 mm

• Self -centered diameter : 200 mm

• Mandrine speed range : 30 - 1600 rpm

• Mandrine attack : Morse 3

• Counterattack attack : Morse 3

• Counter race counterattack : 135 mm

• Motor power : 3 hp

• Power supply : 380 V - 50 Hz

• Total weight : 1200 kg

• Dimensions dimensions : 2100 x 540 x 1350 mm

Discursive description

The Alpin 180 x 1000 parallel lathe is a precision tool machine, ideal for turning processing on medium -sized pieces. Its robust structure and technical characteristics make it suitable for a wide range of industrial applications.

Construction and Components

The lathe is built with a cast iron base, a material that guarantees stability and reduction of vibrations during the processes. The upper and transversal sled allow precise and controlled movements, fundamental for obtaining high quality finishes. The spindle, with Morse 3 attack, is designed to accommodate various types of tools, while the counterattack, also with Morse 3 attack, offers support to long pieces, reducing the risk of unwanted vibrations.

Dimensions and Capacity

With a height of 180 mm and a distance between the tips of 1000 mm, the Alpin 180 x 1000 lathe is able to work pieces with a maximum diameter of 360 mm on the desk and 230 mm on the cart. The 38 mm bar passage allows the use of bars for automatic processing, increasing productivity. The mohrine speed range, which varies from 30 to 1600 rpm, offers versatility in the processes, adapting to different operational needs.

Use and Applications

This lathe is particularly suitable for the processing of ferrous metals and light alloys. It is used in mechanical workshops, prototyping workshops and small industrial productions. Its characteristics make it ideal for precision turning operations, such as the creation of trees, bushings, flanges and other mechanical components.

Maintenance and Verification of Used Equipment

To ensure the longevity and efficiency of the lathe, it is essential to carry out regular maintenance. This includes the lubrication of the guides and the progress mechanisms, the verification of the game in the sleds and the periodic cleaning of the spindle and the counterplay. When buying a used lathe, it is important to check the wear of the guides, the presence of any vibrations during the operation and the general condition of the machine. A good use is distinguished by the absence of excessive games, the presence of all the original components and a documentation that certifies the maintenance made.

Sectors of Use

The Alpin 180 x 1000 lathe is used in various sectors, including:

• Mechanical workshops

• Prototyping laboratories

• Small and medium -sized industrial enterprises

• Automotive sector for the production of components

• Aerospace sector for the creation of precision parts

Advantages of the purchase of the second

Buying a lathe used like Alpin 180 x 1000 offers numerous economic advantages. The machine, if well maintained, can offer performance equal to the new at a significantly lower price. In addition, the purchase of used machinery allows companies to expand their production capacity without excessive investments. However, it is essential to rely on reliable retailers and carefully check the status of the machine before purchasing.

Conclusions

The Alpin 180 x 1000 parallel lathe represents an excellent choice for those looking for a versatile, robust and precise machine. Its technical characteristics make it suitable for a wide range of processes, while its solid construction ensures reliability over time. Both for those looking for a quality used machine, and for those who want to expand their production capacity, the Alpin 180 x 1000 Tornio is a choice that combines performance and economic convenience.
