Detailed Specification Sheet for Used Machine: JUKI FX-3 SMD High-Speed ​​Modular Mounter

General Description: The JUKI FX-3 is a high-speed mounting machine designed for mounting SMD (Surface-Mount Device) components onto printed circuit boards (PCBs). This model is particularly appreciated for its ability to handle mass production with high precision and speed. The unit was initially released in 2008 and offers a unique combination of mechanical and electrical feeders, making it a versatile choice for a variety of production needs.

Main Components:

• 4 Multi-Node Assembly Heads: Each head is equipped with 6 nozzles, allowing for the simultaneous assembly of multiple components.
• Feeders: Supports up to 120 8mm feeders and can handle components ranging in size from 01005 up to 33.5mm square and up to 6mm high.
• Software: The machine operates with Windows-based software, which manages the production flow and enables intelligent component management via RFID and JUKI's "IS" production optimization system.

Technical Specifications:

• Assembly Speed: Up to 60,000 components per hour (CPH).
• PCB Size: Supports PCB up to 14x16 inches.
• Flow Mode: Production flow from left to right.
• Year of Manufacture: 2008.
• Power Supply Type: Mechanical and electric, with the possibility of simultaneous use thanks to batch change trolleys.
• Assembly Precision: Stabilization of component supply via motor in power supplies, minimizing vibrations.

Mechanical Features: The JUKI FX-3 features an advanced laser alignment system, ensuring maximum precision during assembly. Multiple assembly heads allow for greater efficiency, reducing cycle times for complex PCBs.

Formulas for Calculating Optimal Utilization: To calculate the efficiency of the machine, you can use the Throughput :

$\text{CPH}$

Processable Materials: The machine can process a wide range of SMD components, including resistors, capacitors, ICs, and discrete devices. It is particularly suitable for the production of consumer electronics, such as smartphones, tablets, and communications devices.

Maintenance:

• Routine: Regularly check nozzles and power supplies, clean work surfaces, and check laser alignment systems.
• Critical Components: Periodic replacement of worn power supplies and software updates to maintain compatibility with new component formats.
• Maintenance Report: A used machine should be delivered with a detailed report of the maintenance carried out.

Evaluation of Used:

• Condition of Mounting Heads: Check nozzle wear and laser alignment accuracy.
• Hours of Operation: Low operating hours are preferable, but maintenance efficiency is crucial.
• Software Updates: Check that your software is up to date and compatible with current production requirements.

Sectors of Use:

• Electronics Industry: Suitable for PCB manufacturers and electronic board assemblers.
• Mass Production: Ideal for high-speed production environments that require precise and reliable assembly.

Why It's Worth Buying Used:

• Lower Costs: Compared to purchasing a new model, a used JUKI FX-3 offers significant savings while maintaining high production efficiency.
• Reliability: If well maintained and serviced, it can offer performance similar to that of a new model.
• Versatility: The ability to handle both mechanical and electrical power supplies makes it adaptable to a wide range of applications.

In conclusion, the JUKI FX-3 is an excellent solution for businesses looking for high productivity without compromising on assembly quality, and purchasing a reconditioned used model can offer excellent value for money.

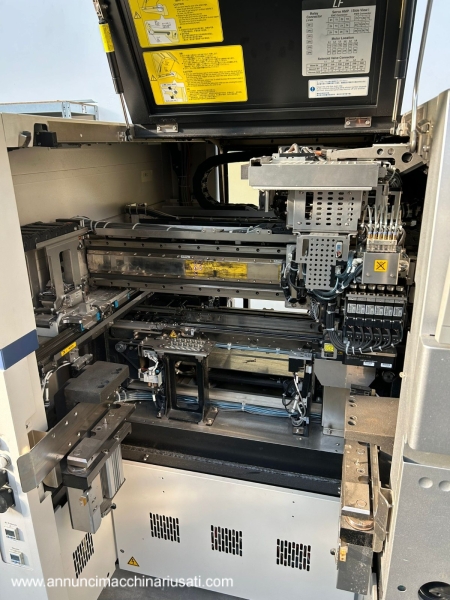

Used JUKI FX3 SMD assembly machine. It is delivered fully overhauled by the dealer with an attached report of the work performed. Supplied with 8 trolleys and 50 8mm magazines. Can be viewed at our headquarters. We are not machine sellers, but circuit board manufacturers.
