BOSSPAK-ZALKIN
TABLET FILLING LINE (CODE MF-PK-LIN-19)

MACHINE TYPE:

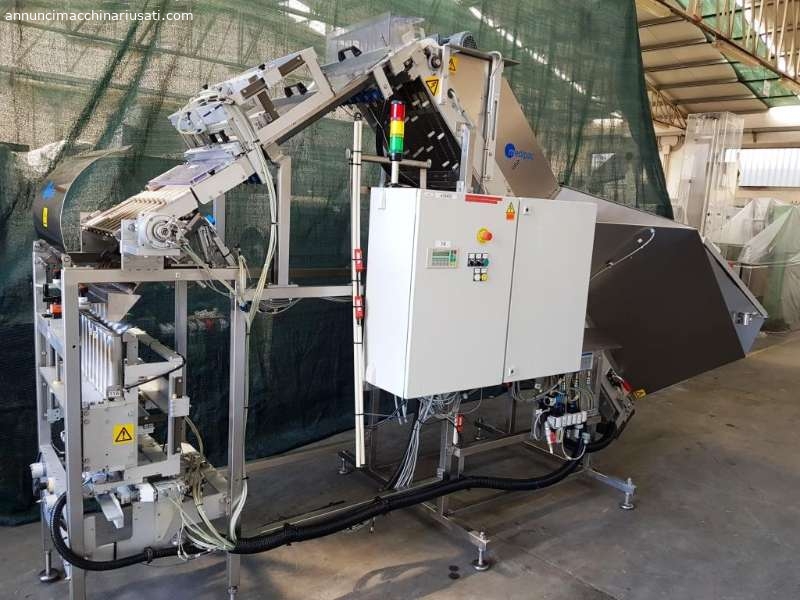

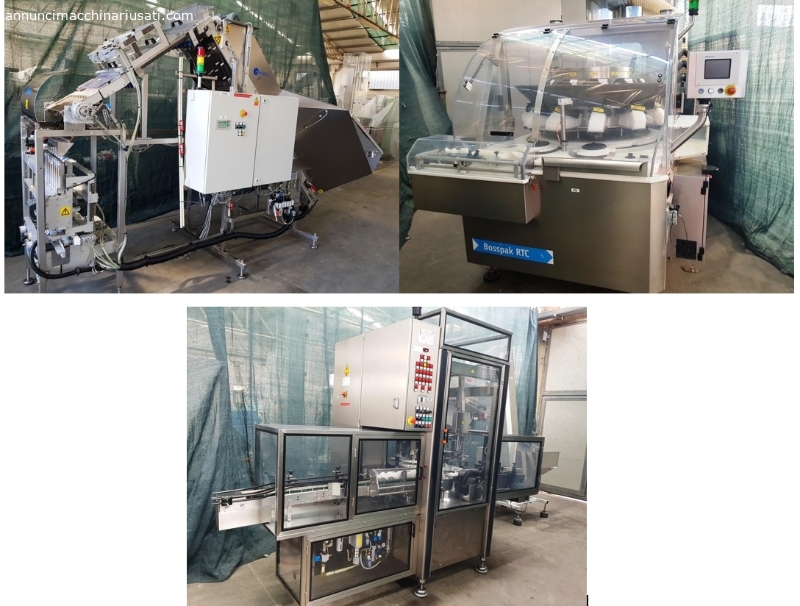

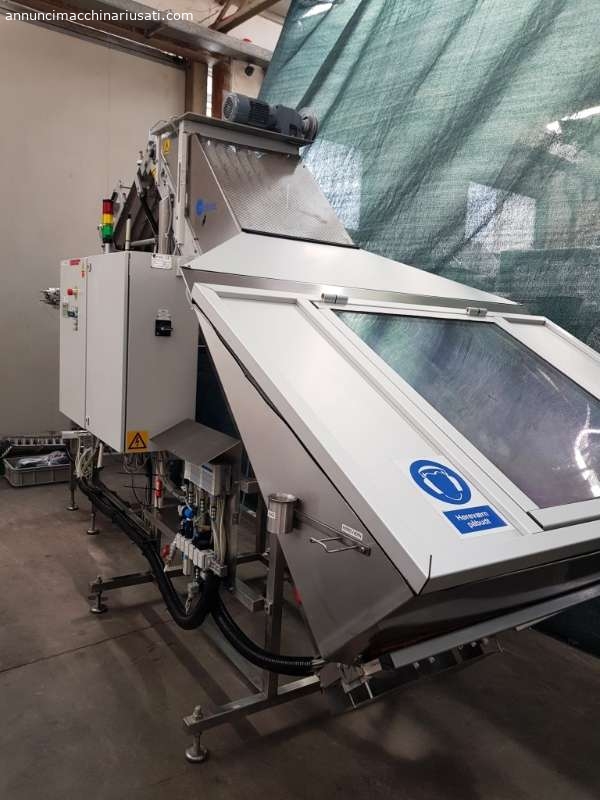

The MEDIPAC MTF8 is a multi-purpose feeder-orientator that delivers the highest quality in every application. Maximum efficiency is accompanied by a host of other important advantages, such as high speed, flexibility, ease of use, and safety.

The BOSSPAK RTC200 automatic counter-filler can insert capsules and tablets into bottles and can adapt to various sizes. Highly flexible and designed with a modular construction, these machines are well known for their robustness and reliability. The technological solutions adopted, the quality of the materials, and the ease of use are the elements that guarantee the great operational reliability of this machine.

The ZALKIN CA5 300 NG automatic capping machine for plastic or glass containers, currently set up for plastic tubes used especially in the cosmetics industry. To ensure maximum safety and quality, as with all Zalkin machines, it is also made exclusively with top-quality materials and equipped with all the necessary safety guards. The electrical panel is constructed in accordance with relevant CE standards.

INDUSTRY OF USE:
Pharmaceutical, chemical, cosmetic, food, dietary, medical device, manufacturing.

SPECIAL FEATURES:

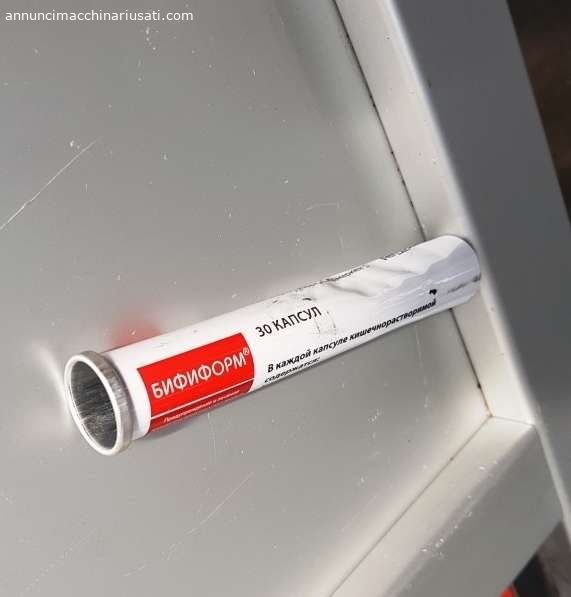

MEDIPAC MTF8 – Plexiglass protective casing. Stainless steel construction. Robust mechanical structure entirely constructed of stainless steel, suitable for absorbing all the typical and common stresses in these contexts. The products are sorted at the infeed and then oriented through selector cells that collect and orient them correctly. The unit has worked with tubes, bottles, and aluminum containers.
Year: 2006

The BOSSPAK RTC200 rotary counting and filling machine represents a new generation of electronic tablet counting. The continuous-motion rotary design offers advantageous container management for counting and filling tablets or capsules. This is facilitated by transferring the containers from the conveyor onto a central bottle starwheel located beneath a rotating counting turret. Tablet or capsule sorting occurs via 12 rotating discs mounted inside the main turret hopper. An optical matrix counter or 'quad' counting system was specifically designed for this application and represents a new generation in counting technology. The counting can detect most broken or chipped tablets or capsules. A complete integrated dust extraction system ensures maximum dust removal before counting. Vibration-free flow filling ensures that the products fall one by one into the bottles. Capsule and tablet separation before counting.
Year: 2006

The ZALKIN CA5 300 NG capping machine was designed with an easy-to-operate process. Gentle processing of bottles and closure components. Once the caps have been placed on the containers, they are conveyed to the capping station where they are sealed by a rotating sealing head. The closed containers are then transferred to the output conveyor belt. Ease of use, quick format changeover, and compact design characterize the machine.
