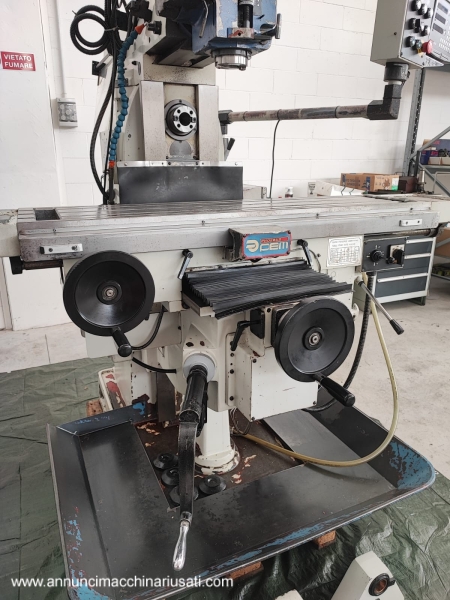

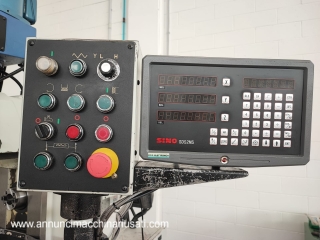

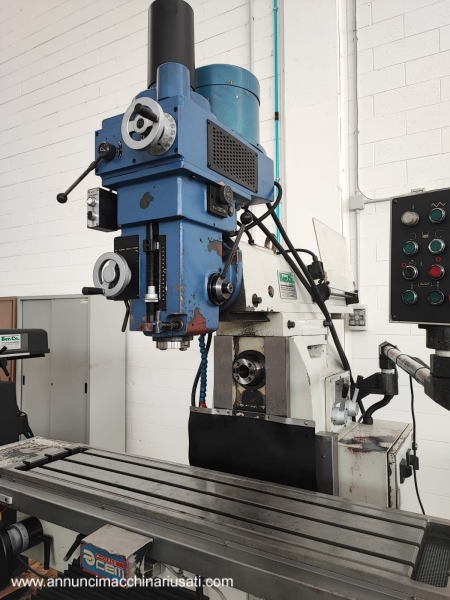

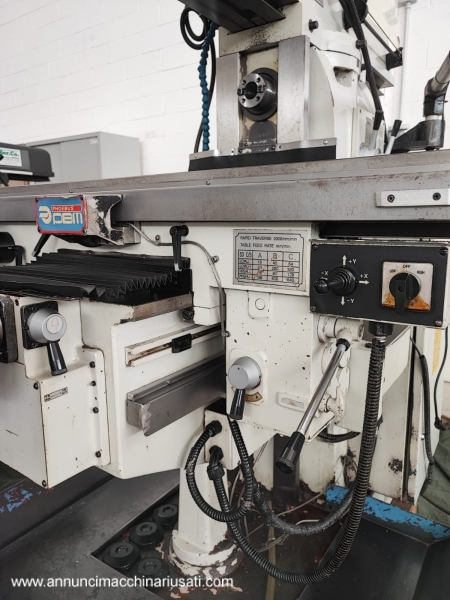

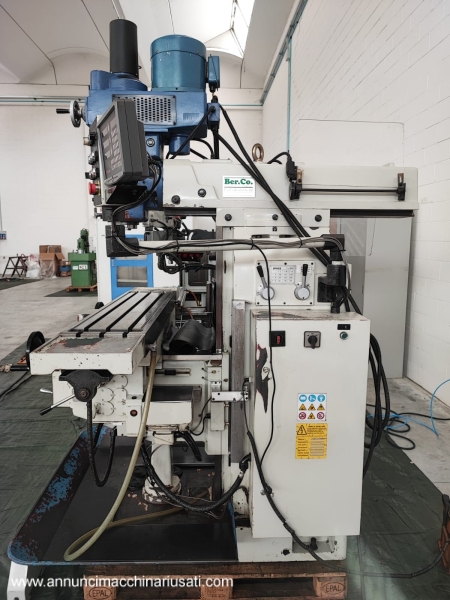

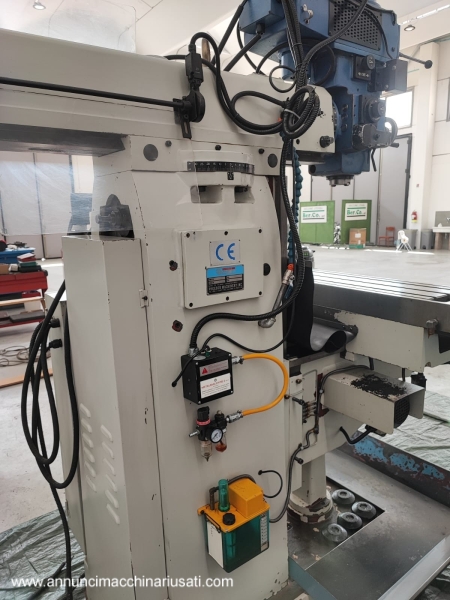

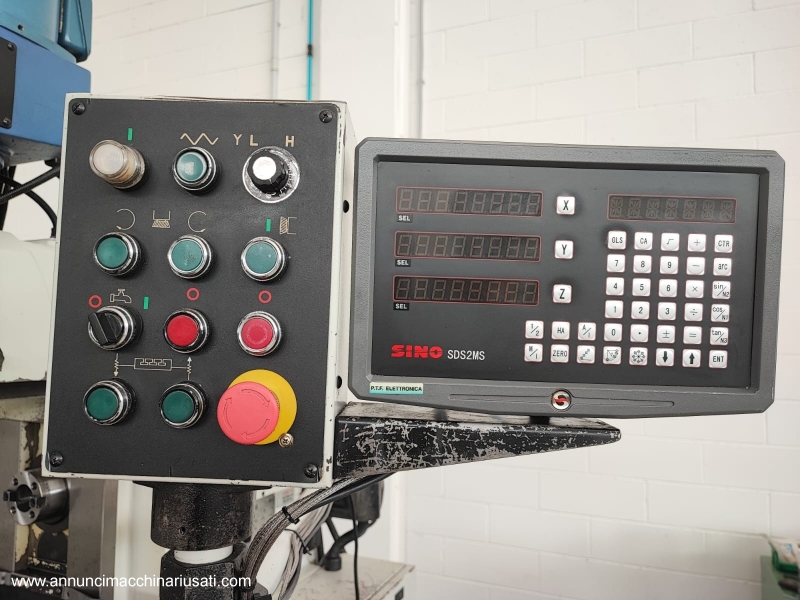

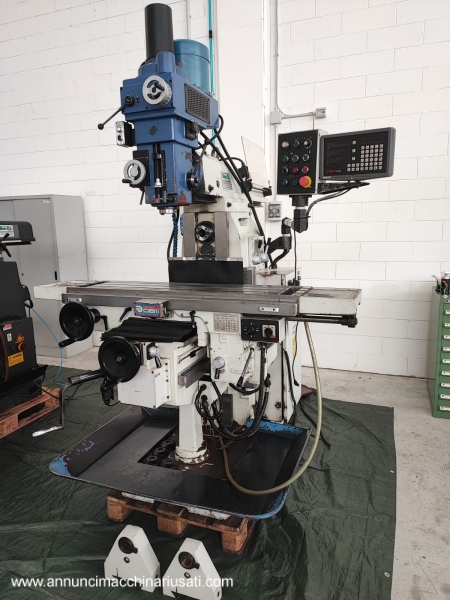

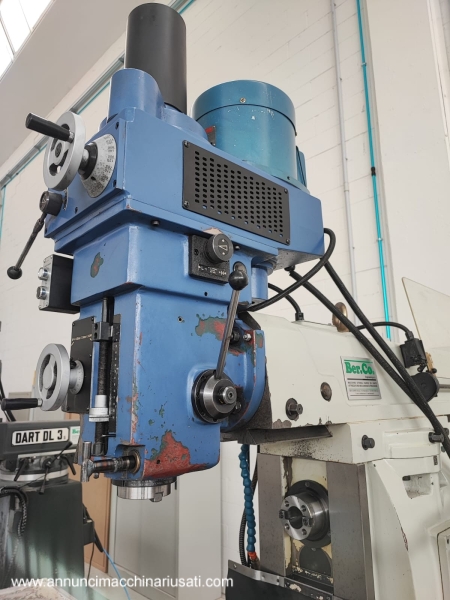

CE compliant 3-axis high-speed milling machine with vertical and horizontal spindle and three-axis digital readout PTF ELECTRONICS MACHINE INSTALLATION: year 2006 MACHINE ACCESSORIES: - ALIGN automatic tool locking (pneumatic starter); - Declaration of conformity (CE mark); - Tempered sliding guides with TURCITE coatings; - Automatic centralized lubrication system for the sliding guides (with timed pump); - Tool cooling system complete with pump and chip collection tank; - Use and maintenance manual (in Italian); - Digital readout manual; - LTF safety guard with CE declaration; - Milling cutter shaft supports. X-axis travel 800 mm Y-axis travel 400 mm Z-axis travel 450 mm Table dimensions 1270x300 mm Maximum load 350 kg Vertical spindle nose connection ISO 40 Maximum tilt angle (right – left) ± 45° Vertical spindle rotation speed 80 – 3800 min-1 Vertical spindle motor power 3.7 kW Horizontal spindle nose connection ISO 40 Horizontal spindle rotation speed 65 - 1500 min-1 Horizontal spindle motor power 3.7 kW Machine dimensions 1740x2050xH2410 mm Machine weight 2450 kg
