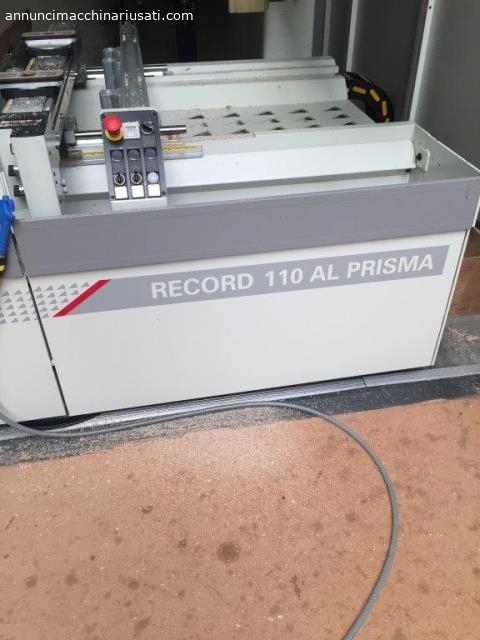

SCM MOD. 5-AXIS MACHINING CENTER RECORD 110AL XL TVN PRISMA – USED

- XYZ axis travels = 6800x2195x440 mm
- working area size: 6110x1550 mm
- C axis travels = 640°
- B axis travels = 270°
- maximum X dimension that can be worked with a pendulum: 2 550 mm (spindle axis)
- workpiece passage: 200 mm

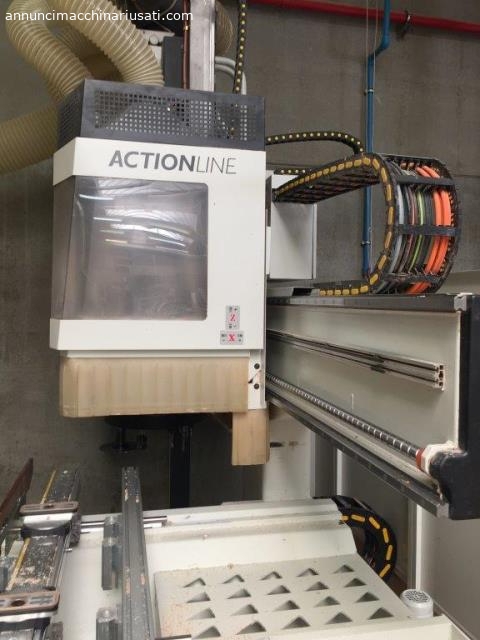

- Prisma K: 5-axis interpolating milling unit with electrospindle and HSK F63 connection
*rotation speed 600-20000 rpm
*max power 11 kW at 12000 rpm (in S1 service) 7 kW at 7500 rpm (in S1 service)
- extraction hood managed by NC for 3 and 5-axis machining
- centralized extraction
- drilling unit managed by the electrospindle inverter
* no. 12 independent vertical spindles (nr.7 right and nr.5 left)
* nr.6 horizontal spindles (2+2 along "X" 2 right/2 left, 1+1 along "Y" right/left)
* variable rotation speed from 2000 to 6000 rpm
* integrated blade Dmax 120 mm with independent vertical movement
* variable blade rotation speed from 2500 to 7500 rpm
* motor power 2.2 kW
- automatic tool changer with nr.16 positions

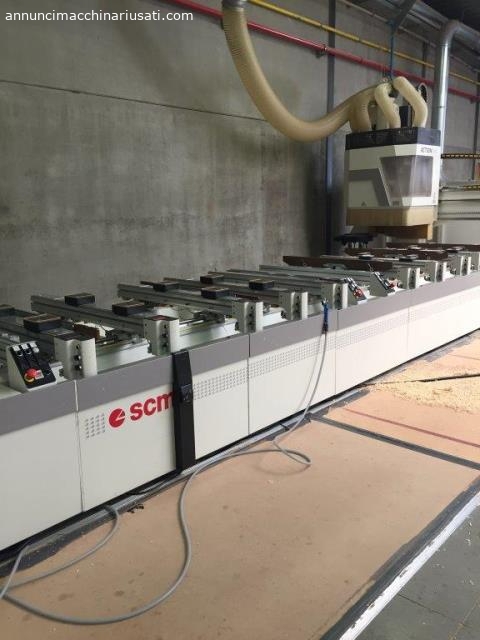

- TVN WORK TABLE
* nr. 2 fixed reference bars for pieces in the X direction, complete with 2 stops each
* nr. 2 mobile central reference bars with position indicator on a millimetric scale complete with nr. 2 reference stops each
* nr. 10 manually mobile bars in the X direction
* nr. 2 reference lines (nr. 1 front and nr. 1 rear) composed of nr°2 reference stops for each mobile bar (for the reference in Y) alternatively selectable via button
* nr° 2 independent vacuum zones for pendulum machining

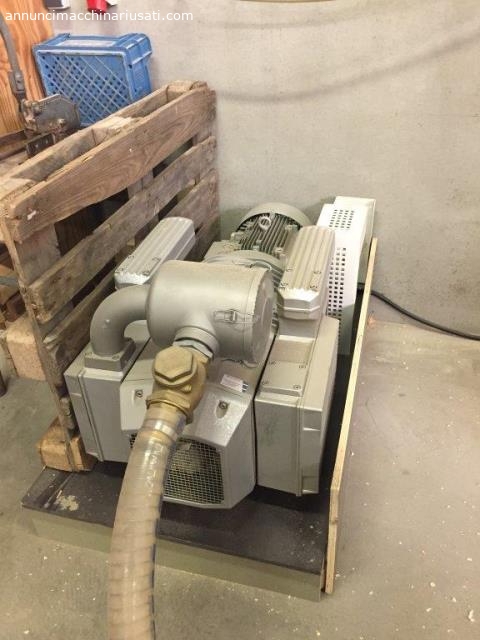

- vacuum pump with flow rate 250 m3/h (5.5 kW)
- NUM numerical control
- PC-OFFICE operating system Microsoft Windows XP
- matr. AA1/015802
- CE year 2006

Price on request
